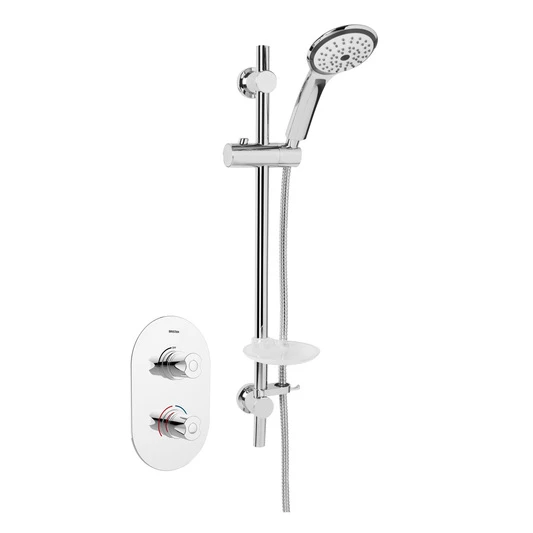

Bristan Artisan 3 Shcmt Chrome – Ar3 Shcmt C

• 15mm inlet connections
• This shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space
• Fitting depth including plasterboard and tiles is 45mm – 75mm
• Minimum cold water supply temperature is 4°c
• Maximum hot water supply temperature is 80°c
• Fully serviceable from the front
• Adjustable fixing brackets on riser rail enables existing screw holes to be used
• Supplied with wall outlet

• Finish: Chrome
• Construction: Body is of brass construction
• Supply: Suitable for all plumbing conditions, preferably balanced.
  The inlet hot water temperature must be at least 10% above the required blend temperature.
• Inlet Connections: 15mm Compression connections
• Working Pressures: Working pressures 0.2-5.0 Bar

Additional Information:

• Chrome plated to BS EN 248
• Suitable for cavities between 45-75mm
• Minimum cold water supply
  temperature is 5°c
• Maximum hot water supply temperature
  is 80°c
• Flow rates at 0.2 Bar (open outlet
  without flow regulators) 8.0 l/min
• Fully serviceable from the front

5 year guarantee covering manufacturing faults
