Inta Mood Contemporary Concealed Dual Control Thermostatic Shower Valve – 90015Cp

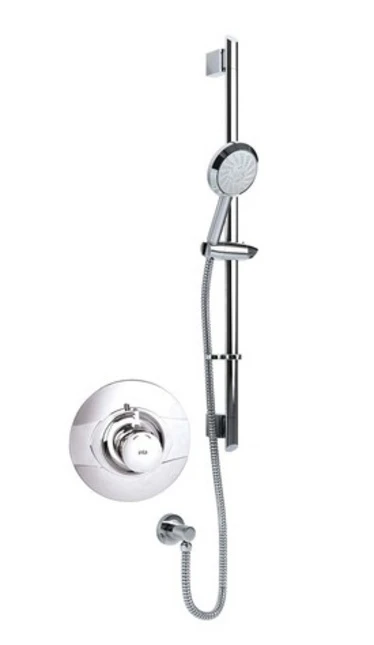

Valve Only – Does not include rail kit as pictured

• Colour: Chrome

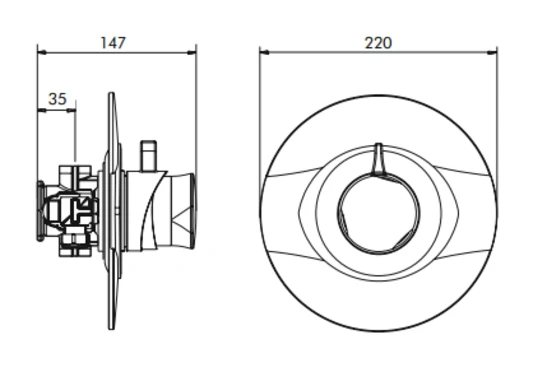

• Depth: 77mm
• Fitment Style: Concealed
• Guarantee: 5 Years
• Height: 220mm
• Inlet Connection: 15mm Compression
• Minimum Running Pressure: 0.2 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Water Entry: Back
• Width: 220mm

The Inta range of showers has been designed to give you the best of both worlds. The Inta collection offers the ultimate balance between excellent performance and the latest designs to suit every bathroom.

Dual control shower valve for independent control of temperature and flow

Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems

Single piece thermal cartridge technology

Factory set at 43°C to prevent scalding

Temperature stability of ± 2°C

Fail safe on hot and cold supplies

Operating pressure range of 0.2 to 5 bar

WRAs approved

TMV2 approved

Exposed and concealed models available

Full range of kits to suit

Technical Specifications

Factory pre set temperature: 38°C with max temp stop
Inlet connections: 15mm compression elbows
Max inlet pressure static: 5 bar
Max inlet temperature: 85°C
Min inlet pressure dynamic: 0.2 bar
Min temp to achieve hot or cold failsafe: 15°C
Outlet connections: 15mm compression
System installation: Unvented, pressurised, gravity and combi boilers
