Nuie S/Steel Bar Valve With Riser & Kit – Jty386

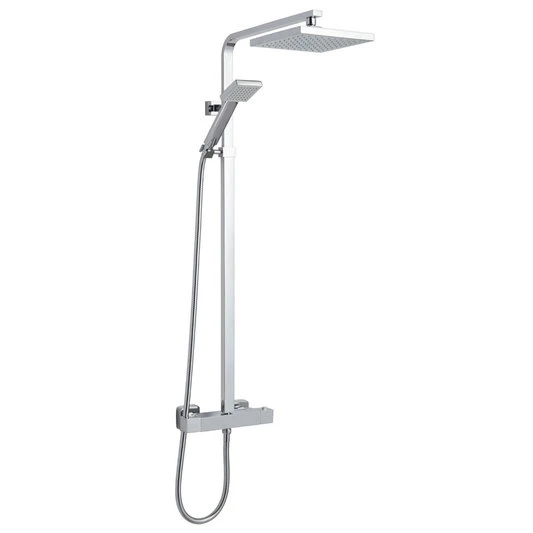

Nuie Thermostatic Bar Valve and Shower Kit – JTY386

The minimalist Nuie thermostatic bar shower valve with shower kit is part of our stylish collection of bathroom products. Modern styling with chrome finish and constructed to the highest standards. Features both a square handheld shower and a fixed rain shower head which sits on an adjustable riser. 5 Year warranty.

Premier JTY386 Square Thermo Bar Shower Valve & Riser Kit – Stainless Steel Finish

Product Code: JTY386

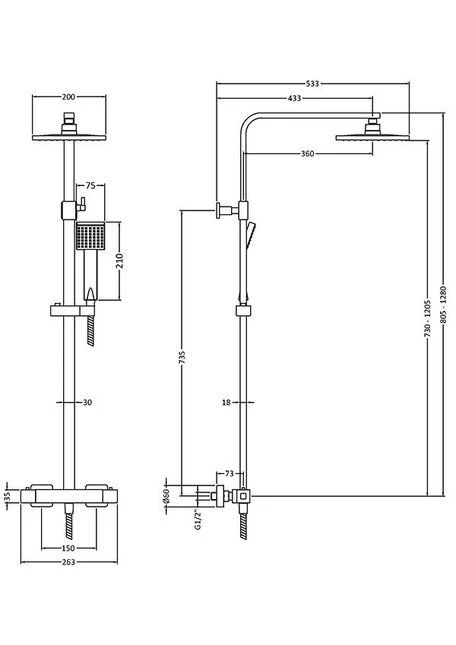

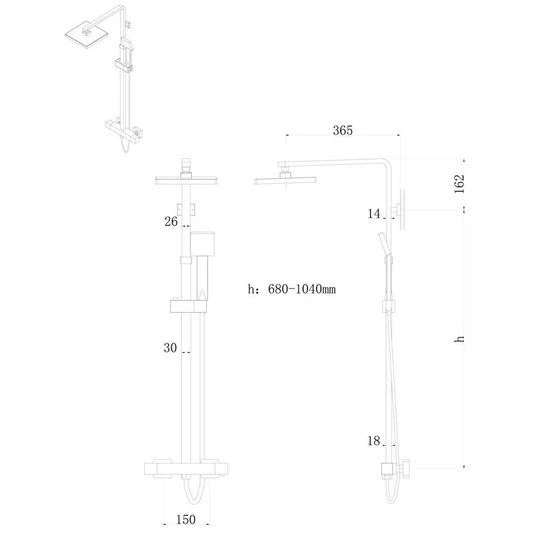

Height: 800-1200mm
Width: 261mm
Depth: 365mm
150mm pipe centres
Colour/Finishes: Chrome & Matt Black
Manufactured from high quality brass & ABS
Square handset on a flexible hose
Product Type: Shower kit
Water Pressure: HP1 – 1 bar pressure minimum
Wall mounted
Contemporary design
The perfect solution to multi-option showering
Thermostatically controlled
Square shower head
Square handset
Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
Full thermal protection to prevent scalding in the event of hot or cold water shut off
In the event of hot or cold water failure the valve will shut down as per the relevant standard
Suitable for high pressure water systems
Suitable for unvented mains pressure systems
Suitable for shower pumps

Flow Rates

0.5 Bar – 4.3 l/m
1.0 Bar – 6.5 l/m
2.0 Bar – 9.6 l/m
3.0 Bar – 12 l/m
