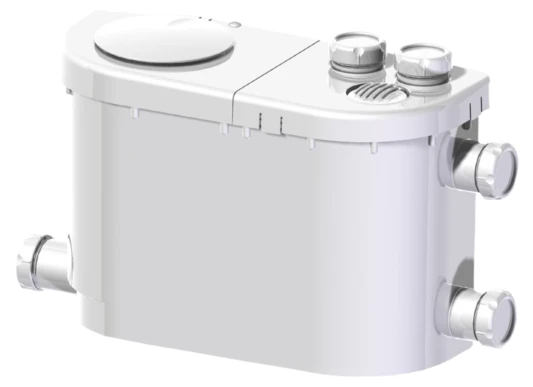

Stuart Turner Wasteflo Ls 5 Lifting Station – 46577
Original price was: $383.88.$99.99Current price is: $99.99.
- Experience Quality, Shop with Us
- The quality you expect, the service you deserve.
- 7 Days of Hassle-Free Returns
- Effortless Shopping, Quality Products
Product Description
The Wasteflo LS5 lifting station is ideal when you need to create a shower room, kitchen or utility room anywhere in your home or commercial building. A bath, showr, basin, sink, washing machine and dishwasher can all be connected.
Product Specification
Technical Specification
| General | |
| Guarantee | 2 Years |
| Features | |
| Slimline design | |
| Noise level | 50 dB (typical) |
| Performance | |
| Maximum head | 7.7 metres |
| Pumping distance (vertical) | Up to 7 metres |
| Pumping distance (horizontal) | Up to 72 metres |
| Maximum flow | 120 l/min |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature | Min 4 °C / Max 50 °C (continuous duty), Max 70 °C (short term rating) |
| Connections | |
| Inlet(s) | 32 mm (1¼ “) dia. (standard), 20 mm / G ¾ elbow connection (washing machine) |
| Outlet | 32 mm, wastepipe adaptor |
| Motor | |
| Duty rating | Continuous |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 2.0 Amps |
| Power consumption | 460 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IPX4 |

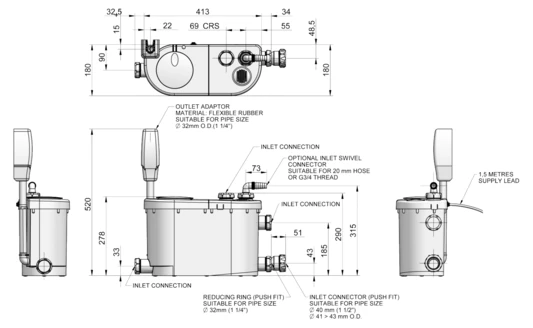

| Length | 413 mm |
| Width | 180 mm |
| Height (excluding hoses) | 278 mm |
| Weight (including fittings) | 7.8 Kg |
