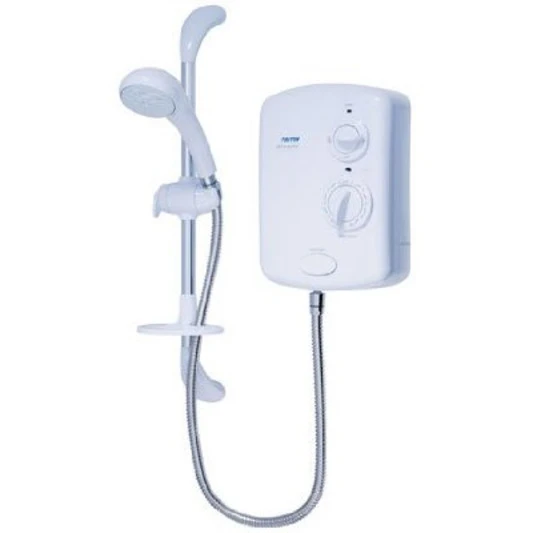

Triton Alicante 8.5kW Electric Shower (White/Chrome) – AGC

The shower must only be connected to a 230-240V ac supply.

The installation must be in accordance with Water Regulations and Bylaws.

To guarantee activating the heating elements,
the shower must be connected to a mains water
supply with a minimum running pressure of
100kPa (1.0 bar) at a minimum flow rate of
eight litres per minute for the 7.5kW and 8.5kW
rated model. Nine litres per minute for the
9.5kW rated model.

For the 10.5kW rated shower, the minimum
running pressure must be 150kPa (1.5 bar) at a
minimum flow rate of eleven litres per minute.
For all models the maximum static pressure must
not exceed 1000kPa (10 bar).





• Cable Entry: Back Left
• Depth: 110mm
• Height: 305mm
• Inlet Connection: 15mm Compression
• Plumbing System: Mains Cold Water Only
• Temperature Control: Manual
• Water Entry: Back Right
• Width: 210mm

• White/Chrome finish
• 3 power settings
• Low pressure indicator
• Power on indicator
• Temperature control
• Separate push on/off control
• 4 showerhead patterns

  SPECIFICATIONS
  Electrical
  Nominal power Nominal power
  rating at 240V rating at 230v
  7.5kW – (32A MCB rating) 6.9kW – (32A MCB rating)
  8.5kW – (40A MCB rating) 7.8kW – (40A MCB rating)
  9.5kW – (40A MCB rating) 8.7kW – (40A MCB rating)
  10.5kW – (45A MCB rating) 9.6kW – (45A MCB rating)

  Dimensions
  Height – 305 mm
  Width – 210 mm
  Depth – 110 mm

  Water
  Inlet connection – 15 mm diameter.
  Outlet connection – ½” BSP male thread.
