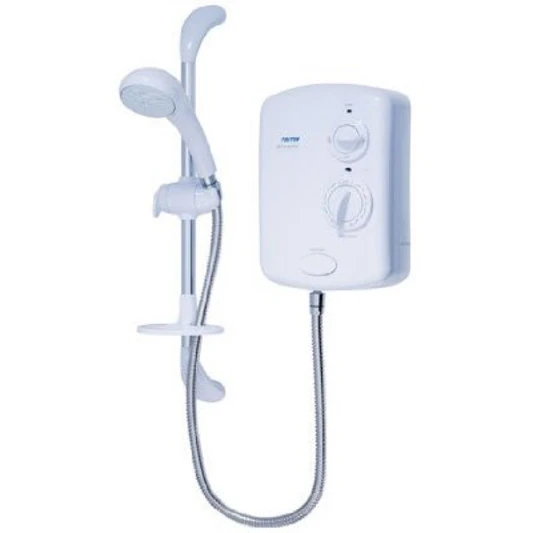

Triton Alicante 9.5kW Electric Shower (White/Chrome) – AGD

• White/Chrome finish
• 3 power settings
• 4 showerhead patterns
• 2 year guarantee

The shower must only be connected to a 230-240V ACsupply.

The installation must be in accordance with Water Regulations and Bylaws.

To guarantee activating the heating elements, the shower must be connected to a mains water supply with a minimum running pressure of 100kPa (1.0 bar) at a minimum flow rate of eight litres per minute for the 7.5kW and 8.5kW rated model. Nine litres per minute for the 9.5kW rated model. For the 10.5kW rated shower, the minimum running pressure must be 150kPa (1.5 bar) at a minimum flow rate of eleven litres per minute.

For all models the maximum static pressure must not exceed 1000kPa (10 bar).

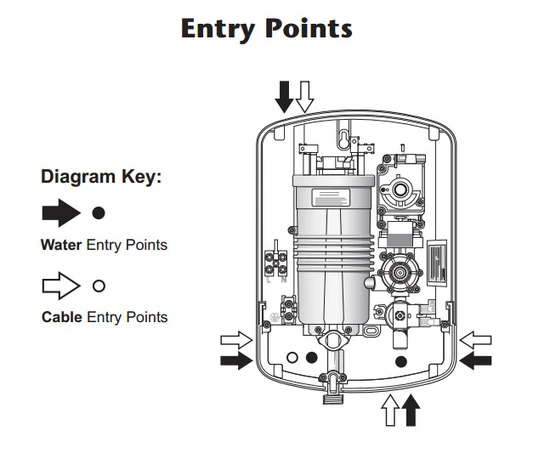

• Cable Entry: Back Left
• Depth: 110mm
• Height: 305mm
• Inlet Connection: 15mm Compression
• Plumbing System: Mains Cold Water Only
• Temperature Control: Manual
• Water Entry: Back Right
• Width: 210mm

• White/Chrome finish
• 3 power settings
• Low pressure indicator
• Power on indicator
• Temperature control
• Separate push on/off control
• 4 showerhead patterns

  Dimensions:
  Height – 305 mm
  Width – 210 mm
  Depth – 110 mm

  Water:
  Inlet connection – 15 mm diameter.
  Outlet connection – ½” BSP male thread.
